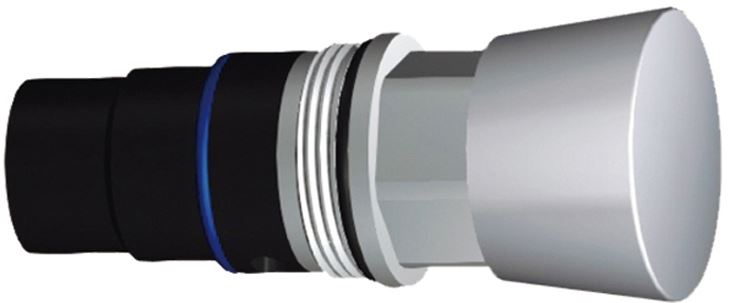

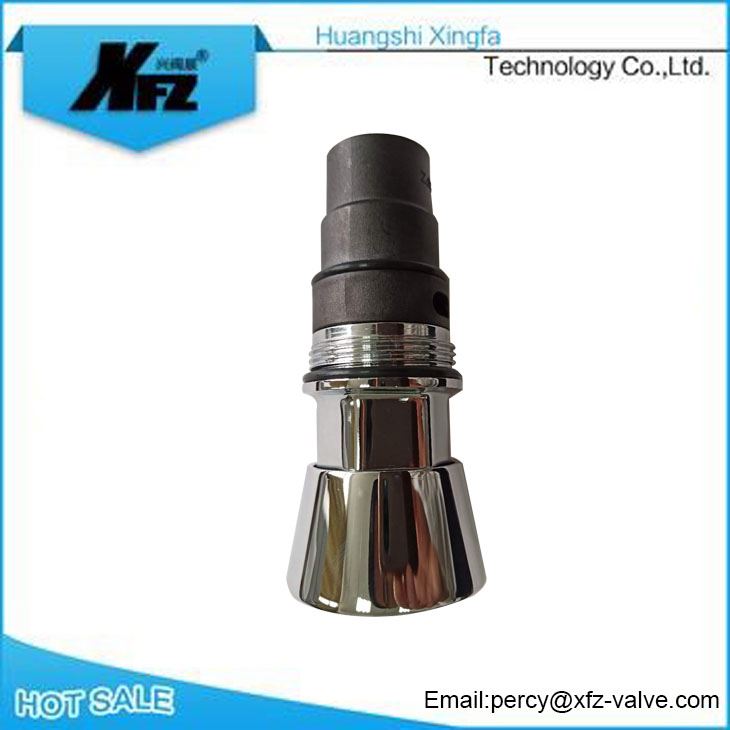

M28 One-piece Self-closing Integrated Valve Cartridge

Description

Model:8-00-005-03
Specification:DN15
Cartridge opening pressure:≤16N
Switch trip:8.5mm

Description


Main material	NBR,Hpb59-1,PPS,EPDM	Service life		500,000 times
Limiting	6L/Min	Strength test		Static pressure 2.5MPa
Average flow	0.1 L/S(0.1 Mpa)	Maximum operating temperature		90℃
Seal test pressure range	0.05~0.75MPa	In and out term		Bottom in and side out
Delay time(s)		4.5±1.5s	6.5±2s	10±3s

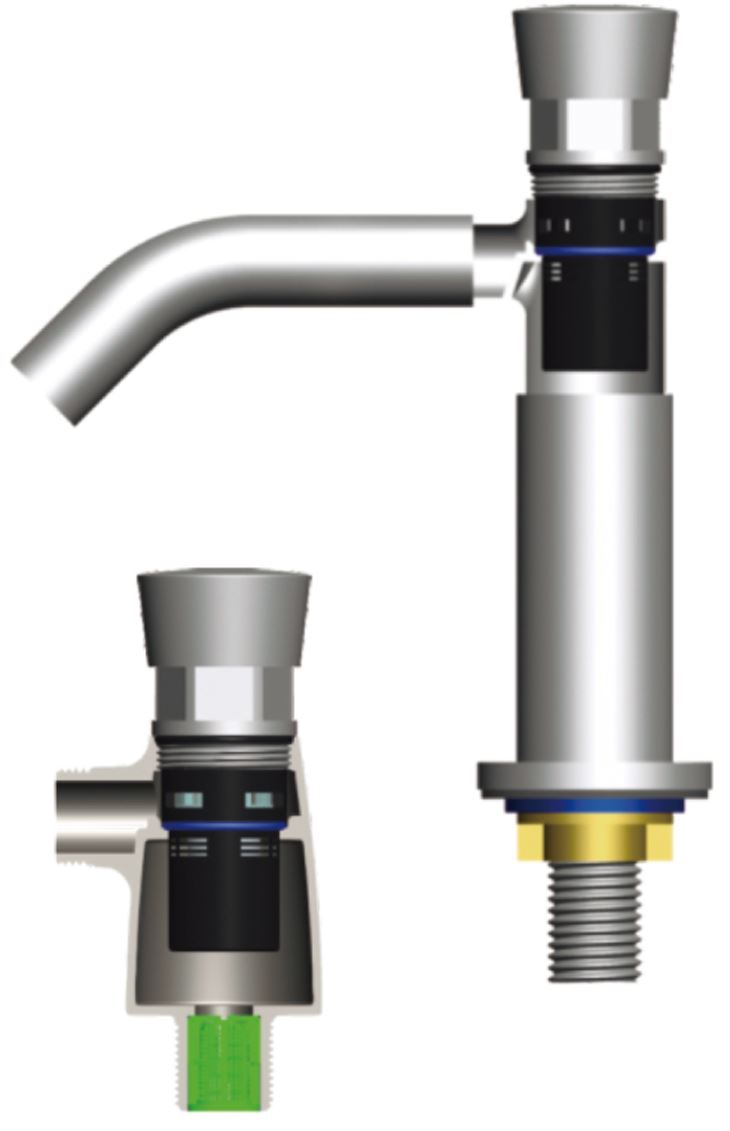

Faucet Picture with our M28 Self-closing Integrated Valve Cartridge Image

Company Information

Huangshi Xingfa Technology Co.,Ltd. was established in 2013 with independent import and export rights and features the innovative cartridge and related valve&faucet creations.Our refined sanitary product designs are not only developed for individual consumers who are interested in adding quality and character to their homes, but also continue to be featured as the stylistic signature for a growing number of small and large scale architectural and interior design projects around the world.In addition to beautiful standard bathroom products, we also specialize in the development of extraordinary OEM and ODM Projects. Browse through our products sections on our website to see the variety of products available to find more about of the mesmerizing creations credited to us.
